4-Axis CNC Diamond Wire Saw Machine With 360° Servo-Rotary Table
Discovery 4 (Plus) – Ultimate 4-Axis CNC Diamond Wire Saw Machine

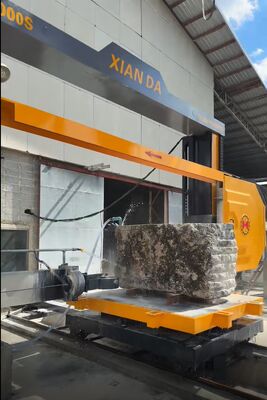

The Discovery 4-2500SA/3000SA represents the flagship model in CNC diamond wire saw technology. This four-axis, fully digital cutting center features a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that enable precision cutting of arcs, columns, letters, Chinese characters, and tombstones up to 3m * 3m * 1.5m in a single program, delivering mirror-quality surfaces.
Key Advantages
Machine Overview
Model Specifications
| Model | Max Block | Table Size | Footprint | Weight | Wire Wheel |
|---|---|---|---|---|---|
| Discovery 4-2500SA | 2.5 * 3 * 1.5 m | 1.4 * 2 m | 7.8 * 6.8 * 4.25 m | 8.25 t | Ø1600 mm |
| Discovery 4-3000SA | 3 * 3 * 1.5 m | 1.6 * 2 m | 8.8 * 6.8 * 4.25 m | 8.75 t | Ø1600 mm |
Both models feature 20-40 m/s wire speed, 15 kW permanent-magnet motor, and 3 m³/h water system.
Four-Axis Motion System
This configuration enables true 3D sculpture, 360° columns, four-sided squaring, or curved façade panels without repositioning.

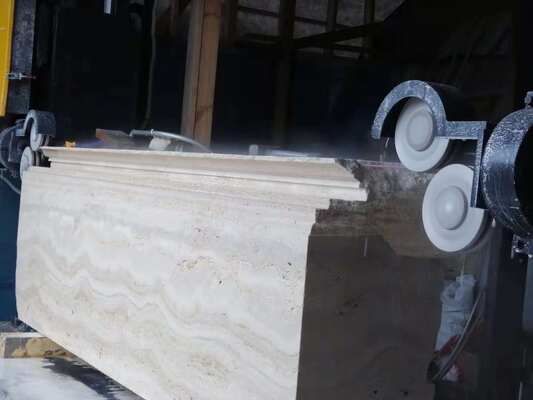

Application Capabilities
Compatible materials: granite, marble, quartzite, basalt, engineered stone.
Ordering & Shipping Information
